EVO-LITE-ENT40 min

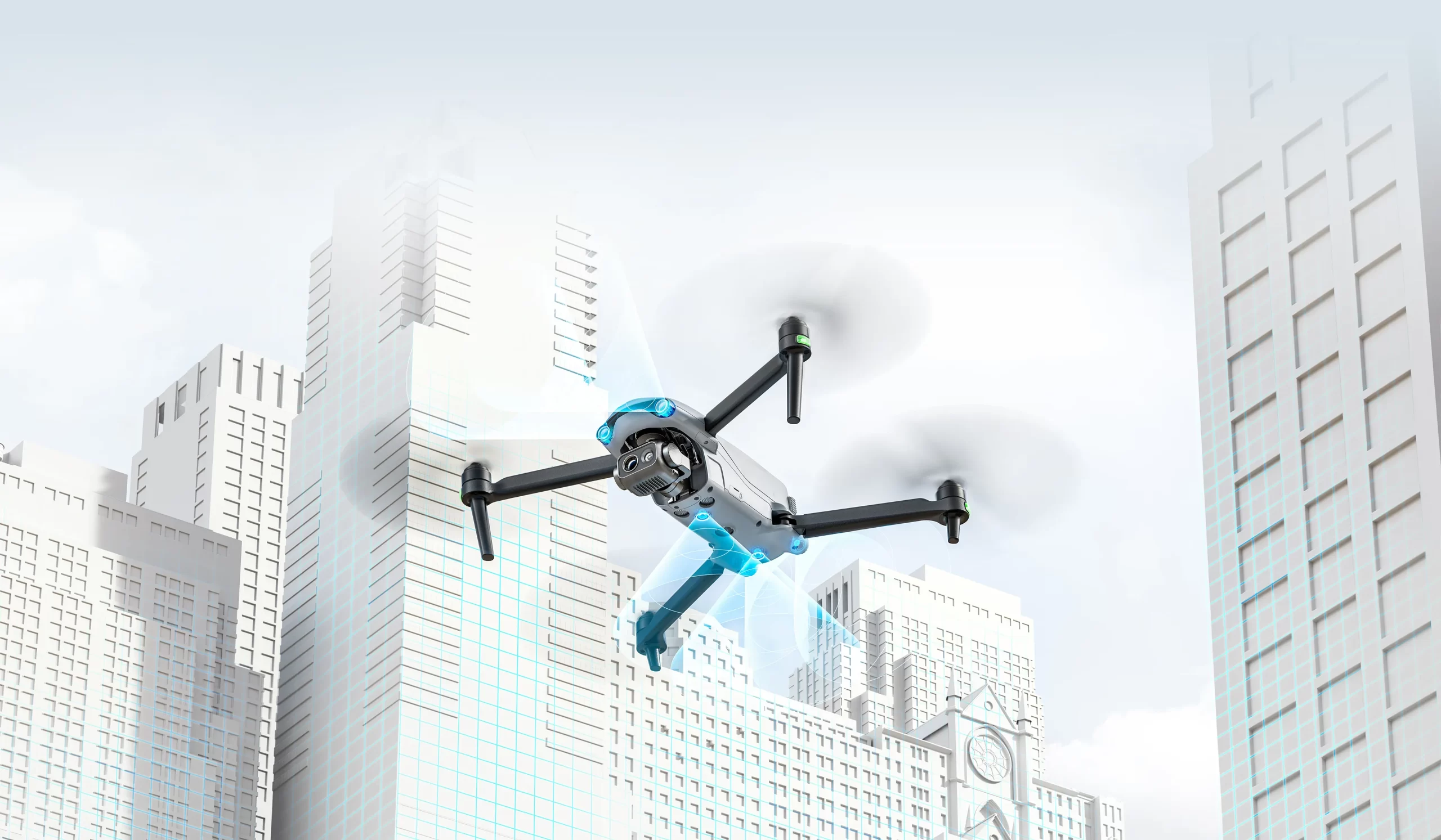

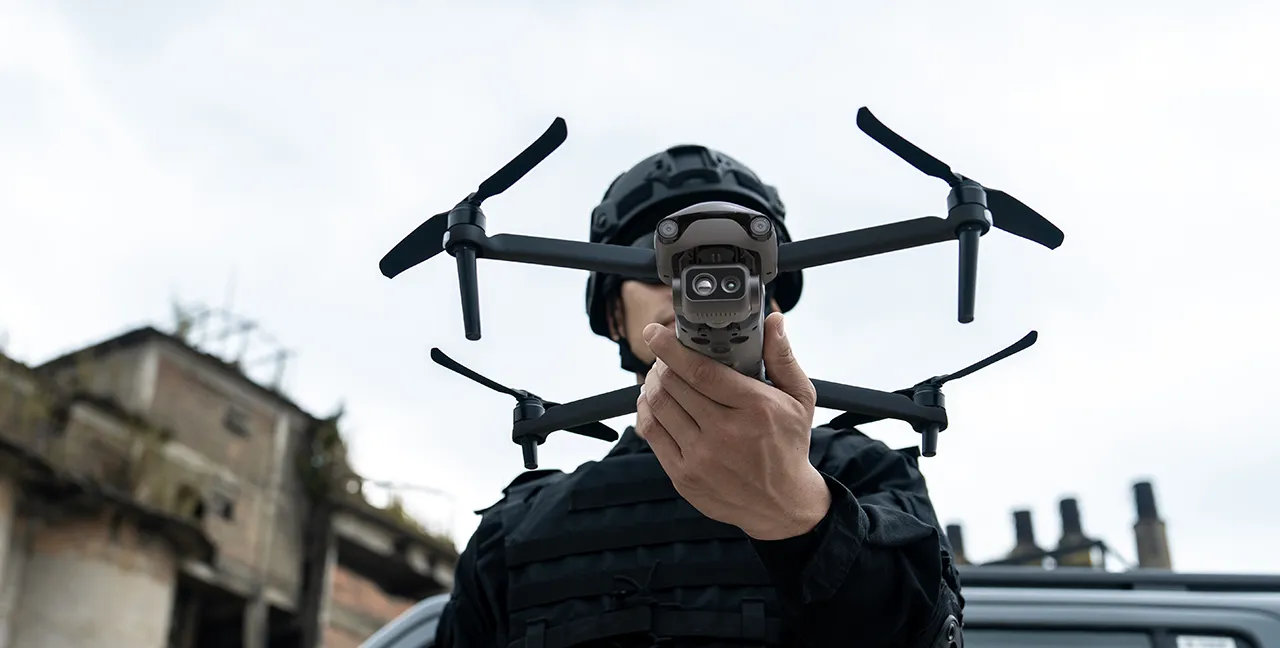

EVO Lite Enterprise — RTK-Ready Commercial Drone
Commercial version of the EVO Lite: RTK module support, speaker, beacon and LED payloads, 48 MP 1/2-inch camera plus thermal option and 40-minute endurance for site work.
Flight Time
40 min
Camera
48 MP + thermal option
Range
12 km
Weight
866 g
Wind Resistance
10.7 m/s
Max Speed
18 m/s
- ✓RTK module support for centimeter-accurate positioning
- ✓Interchangeable speaker, beacon, LED and thermal payloads
- ✓40 min flight time, 12 km FCC transmission
- ✓Wind resistance up to 10.7 m/s for coastal and mountain sites
- ✓AES-256 encrypted data link for security missions
Full Specifications
Aircraft
Maximum takeoff weight
866 g
Dimensions
226.3×137.7×31.5 mm (antennas folded) 226.3×215.4×31.5 mm (antennas unfolded)
Max. rotation speed
8000 rpm
Wheelbase
368 mm
Propeller Dimension
8.5 inch injection molded propeller. Spec: 8530
Propeller weight
7.5 g
Maximum ascent speed
Slow:3 m/s Smooth:3 m/s Standard: 5 m/s Ludicrous: 6 m/s
Maximum descent speed
Slow:3 m/s Smooth:2 m/s Standard: 3 m/s Ludicrous: 4 m/s
Maximum horizontal flight speed (no wind near sea level)
Slow :3 m/s Smooth:5 m/s Standard: 10 m/s Ludicrous: 18 m/s
Maximum Service Ceiling Above Sea Level
3000 meters
Maximum flight altitude
Chinese Mainland or EU: no more than 120 meters US: no more than 400 feet Note: In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain authorization from authority.
Maximum flight time(no wind)
40 minutes Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.
Maximum flight mileage
24 km
Maximum hover time(no wind)
37 minutes Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.
Maximum Wind Speed Resistance
10.7m/s
Maximum tilt angle
Slow: 15° Smooth: 30° Standard: 30° Ludicrous: 33°
Maximum rotation angular speed
Smooth: 60°/s Standard: 120°/s Ludicrous: 200°/s
Working temperature
-10°C~40°C
Battery hot replacement
Not support
Internal storage
Onboard storage: 4GB (support microSD card of up to 256GB)
GNSS
GPS/Galileo/BDS/GLONASS
Hover accuracy
Vertically: ±0.1 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally) Horizontally: ±0.15 meters (when visual positioning is working normally) ±0.3 meters (when GNSS is working normally)
Operating Frequency
900M: 902–928MHz* 2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz 5.2G: 5150–5250MHz*** 5.8G: 5.725–5.829GHz**，5.725–5.850GHz *Only applicable to FCC and ISED regions **Only applicable to SRRC regions ***Only applicable to FCC and RCM regions Note: Some frequencies are only available in some regions or only used in door.…
Maximum signal effective distance (No interference, no obstruction)
FCC: 12 km CE: 6 km
Effective transmitter power( EIRP)
2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)
Material
PC+ABS
Operating Temperature
0 ~ +40°C
Storage Temperature
+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
Protection Rating
IP43
Internal Storage
Built-in storage of 32GB Available storage: 24GB
MicroSD Extension
Supported
Operating System
Based on Android 6.0.1
Application Installation
Supports the installation of third-party Android apps
USB -C
Charging: supports PD/QC fast charging, up to 65W
USB -A
USB2.0
Wi-Fi Protocol
802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency
2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835GHz 5.8G: 5.725–5.829GHz*, 5.725–5.850GHz *Only applicable to SRRC regions Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and regulations.
Wi-Fi Effective IsotropicRadiated Power (EIRP)
2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC) 5.8G: ≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE)
Bluetooth
Bluetooth 4.2
Bluetooth Operating Frequency
2.400–2.4835GHz Note: Some regions specify frequency ranges. For details, please refer to local laws and regulations.
Bluetooth Effective IsotropicRadiated Power (EIRP)
≤20dBm
Antenna
Dual antennas, 1T2R, detachable design
Effective Isotropic Radiated Power (EIRP)
900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC) 5.2G: ≤30dBm (FCC/RCM) 5.8G: ≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)
Maximum Transmission Distance (Without Interference and Blocking)
FCC: 12 km CE/SRRC: 8 km
Battery Type
LiPo 3S
Rated Capacity
6175 mAh
Battery Energy
68.7 Wh
Voltage
11.13 V
Charging Voltage Limit
12.75V
Rated Charging Power
63.75W
Maximum Charging Power
78W
Battery Charging Temperature
+5-+45°C (When the battery temperature is below 5°C, the battery stops charging. When the battery temperature is above +45°C, the battery stops charging.)
Ideal Storage Environment
+ 22°C ~ +28°C
Storage Temperature and Humidity
- 10°C ~ +30°C, 65 ± 20%RH
Camera & Gimbal
Sensing range
Forward: 0.2~23 meters Effective obstacle avoidance speed: ＜10m/s Backward: 0.2~30 meters Effective obstacle avoidance speed: ＜10m/s Downward: 0.2~20 meters
FOV
Forward: 75° horizontally, 87° vertically Backward: 35° horizontally, 45° vertically Downward: 99° horizontally, 83° vertically
Effective use of the environment
Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting environment) Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting environment) The surface is made of diffuse reflective ma…
Image sensor
1/2 inch CMOS, 48 million pixels
Lens
FOV: 61° Focal length: 9.1 mm Aperture: f/1.0 Focusing distance: 2.2 m ~ ∞
ISO range
Auto/Manual: ISO100 ~ ISO6400
Shutter speed
1/10000 ~1/60 seconds
Defog mode
Support
Zoom
4K: 1–16x digital zoom8K: 1–8x digital zoom
Maximum photo size
4000×3000, 8000×6000
Photo format
JPG
Video resolution
4000×3000 P30
Video format
MP4/MOV
Video coding format
H.265/H.264
Support file system
FAT32/exFAT
Image Sensor
Uncooled VOx Microbolometer
Sensitivity
≤50mK@f/1.0, 25°C
Pixel Pitch
12um
Wavelength
8–14um
Radiometric Measurement Method
Center measurement/Pot measurement/Rectangular measurement
Radiometric Temperature Range
-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy
±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate TemperatureMeasurement Distance
1 ~ 25 m
Digital Zoom
1–16x digital zoom
Temperature Alert
In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values
Palette
White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
Photo Size
640×512
Photo Format
JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
Video Resolution
640×512 30P
Video Format
MP4/MOV
Refresh Rate
60Hz
Touch Control
Supports 10-point touch
Payload & Accessories
Mechanical scope
Pitch: -135°~45° Roll: -50°~50° Yaw: -90°~90°
Controllable rotation range
Pitch: -90°~30°
Stable system
Three-axis stabilization
Maximum control speed (pitch)
100°/s
Angualr vibration range
±0.003°
Battery & Charger
Battery Type
Li-Po
Rated Capacity
1900 mAh
Voltage
DC 7.7V
Battery Energy
14.63 Wh
Charging Time
About 90 minutes (charging time is related to actual remaining power)
Battery Endurance
1.5 hours (Max brightness) 2.5 hours (50% brightness)
Battery Replacement
Supported
Power Input
100–240V ~ 50/60 Hz, 1.5 A
Output Port
Battery charging interface/USB-A
Battery Charging Interface
12.75V 5A
USB Charging Port
5V 3A, 9V 2A, 12V 1.5A
Rated Power
63.75W Max
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
