EVO2-DUAL640T38 min

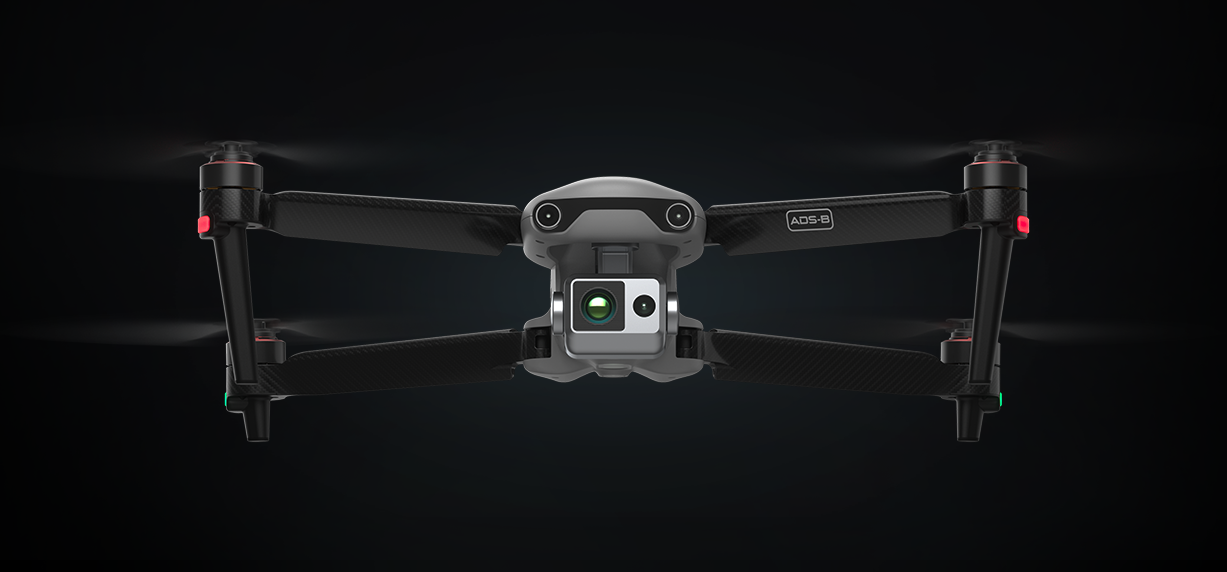

EVO II Dual 640T V3 — Thermal & Zoom Enterprise Drone
Dual-sensor enterprise drone: 640×512 thermal imager plus 8K zoom camera with picture-in-picture, 38-minute flights and 15 km range for search, inspection and firefighting.
Flight Time
38 min
Camera
640×512 thermal + 8K zoom
Range
15 km
Weight
1209 g
Wind Resistance
10.7 m/s
Max Speed
20 m/s
- ✓640×512 thermal imager with 16× digital zoom
- ✓8K zoom camera with picture-in-picture thermal overlay
- ✓38 min flight time, 15 km FCC transmission
- ✓12-sensor omnidirectional obstacle avoidance
- ✓Spotlight, speaker and beacon payload compatibility
Full Specifications
Aircraft
Weight (With propellers, battery)
1209 g
Maximum takeoff weight
1270 g (C2)
Dimensions
269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
Max. rotation speed
9000 rpm
Wheelbase
397 mm
Maximum ascent speed
Novice mode:3 m/s Standard: 5m/s Ludicrous: 8 m/s
Maximum descent speed
Novice mode: 3 m/s Standard: 3 m/s Ludicrous: 4 m/s
Maximum horizontal flight speed (no wind near sea level)
Novice mode: 3 m/s Standard: 10 m/s Ludicrous: 20 m/s
Maximum Service Ceiling Above Sea Level
5000 meters
Maximum flight altitude
800 meters (Altitude limit in the App)
Maximum flight time (no wind)
38 minutes
Maximum range
25 km
Maximum flight distance (no wind)
22 km
Maximum hover time (no wind)
33 minutes
Maximum Wind Speed Resistance
10.7 m/s
Maximum tilt angle
Novice mode: 15° Standard: 30° Ludicrous: 33°
Maximum rotation angular speed
120°/s
Working temperature
-10~40°C
Battery hot replacement
not support
Internal storage
8GB
GNSS
GPS/Beidou/Glonass/Gallieo
Hover accuracy
Vertically: ±0.1 meters (when visual positioning is working normally) ±0.5 meters ( when GNSS is working normally) Horizontally: ±0. 3 meters (when visual positioning is working normally) ± 1.5 meters ( when GNSS is working normally )
Operating Frequency
900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz 5.7G: 5.65–5.755 GHz*** 5.8G: 5.725–5.829GHz**, 5.725–5.850 GHz * Only applicable to FCC regions. **Only applicable to SRRC regions. *** Only applicable to MIC regions. Note: Some frequencies are only available in some regions or for indoor use only.…
Maximum signal effective distance (No interference, no obstruction)
FCC: 10 kilometers CE: 8 kilometers
Effective transmitter power ( EIRP)
900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm (FCC/ISED), ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC) 5.8G: ≤30dBm (FCC/ISED/SRRC), ≤14dBm (CE/UKCA)
Material
PC+ABS
Operating Temperature
-20°C to 40°C
Storage Temperature
+15°C ~ +25°C (within a year) 0°C ~ +30°C (within three months) -20°C ~ +45°C (within a month)
Protection Rating
IP43
Internal Storage
128GB
microSD Extension
Not supported
Operating System
Based on Android 11
Application Installation
Supports the installation of third-party Android apps
Video Performance
4K@24FPS H.264/H.265 video smooth play
HDMI
Outputs up to 1080P@60FPS video
USB-C
Charging: supports PD 60W fast charging and QC 18W fast charging. Data: USB3.1 Gen2
USB-A
Charging: 5V/2A Data: USB2.0
Wi-Fi Protocol
802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency
2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725–5.829GHz*, 5.725–5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
Wi-Fi Effective Isotropic Radiated Power (EIRP)
2.4G: ≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm(CE/UKCA)
Bluetooth
Bluetooth 5.0
Bluetooth Operating Frequency
2.400–2.4835 GHz
Bluetooth Effective Isotropic Radiated Power (EIRP)
≤20dBm
Antenna
Dual antennas, 1T2R, detachable design
Effective Isotropic Radiated Power (EIRP)
900M: ≤30dBm (FCC) 2.4G: ≤30dBm (FCC), ≤20dBm (CE/SRRC), ≤12.14dBm (MIC) 5.7G: ≤30dBm (MIC) 5.8G: ≤33dBm (SRRC), ≤30dBm (FCC), ≤14dBm (CE)
Maximum Transmission Distance (Without Interference and Blocking)
FCC: 15 km CE/SRRC: 8 km
Size(L*W*H)
230*130*108mm(folded) 457*558*108mm(unfolded)
Maximum service ceiling altitude
7000 m
Max ascent speed
8 m/s (Ludicrous)
Max descent speed
4 m/s (Ludicrous)
Max horizontal flight speed
20m/s (Ludicrous)
Max flight distance (no wind)
22 km
Max angular velocity
120°/s
Max tilt angle
33° (Ludicrous)
Max flight time (no wind)
38 min
Max hovering time (no wind)
33 min
Operating temperature range
-10°C ~ 40°C
Maximum resistance to wind
12 m/s (Take-off and landing)
Operating frequency
non-Japan: 2.400 GHz - 2.4835 GHz; 5.725–5.850 GHz Japan: 2.400 GHz - 2.4835 GHz; 5.650–5.755 GHz
Transmission power
2.4G FCC/ ISED: ≤27dBm SRRC/CE/MIC/RCM: ≤20dBm5.8G (non-Japan) ; 5.7G (non-Japan) FCC/ISED/SRRC/MIC: ≤27dBm CE/ RCM: ≤14dBm
Hovering accuracy
Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)
SD storage
max. support 256GB (UHS-3 or Class 10)
Max Transmission Distance (unobstructed, free of interference)
FCC: 9 km CE: 5 km
Real-time image transmission quality
720p@30fps / 1080p@30fps
Maximum bit rate of real-time image transmission
40Mbps
Remote controller battery
5000mAh
Run time
3 hours
Charging time
2 hours fast charging
Display screen
3.26'' OLED 854(W) * 480(H)Pixel Directly preview the video without connecting a mobile phone
Working current/voltage
1.7A@3.7V
Camera & Gimbal
Sensing range
Forward: 0.5~18 meters Effective sensing speed:＜10m/s Backward: 0.5~16 meters Effective sensing speed:＜10m/s Left and right: 0.5~10 meters Effective sensing speed:＜5m/s Upward: 0.5~10 meters Effective sensing speed:＜5m/s Downward: 0.5~10 meters Effective sensing speed:＜5m/s
FOV
Forward and backward: 60° horizontally, 80° vertically Upward: 65° horizontally, 50° vertically Left and right: 65° horizontally, 50° vertically Downward: 100° horizontally, 80° vertically
Effective use of the environment
Front, rear, left and right:The surface has rich texture and sufficient lighting conditions ( >15 lux, normal indoor fluorescent lighting environment) Above: The surface is a diffuse reflection material and the reflectivity is >20% (such as walls, trees, people, etc.) Below: The ground is richly textured and the lig…
Image sensor
1/2 inch CMOS, 12 million pixels
Lens
FOV: 79° 35 mm format equivalent focal length: 25.6 mm Aperture: f/1.8 Focus range: 0.5 m to infinity (with auto focus)
ISO range
Video: 100–6400 Photos: 100–3200
Shutter speed
Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
Zoom
1–16x (up to 4x lossless zoom)
Maximum photo size
8000x6000(4:3) 7680x4320(16:9) 4000*3000 (4:3) 3840*2160 (16:9)
Photo format
TIFF+JPG (with irg file)
Photo shooting mode
Single shooting (default)/Brust shooting/AEB continuous shooting/time lapse/HDR shooting
Video resolution
3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P120/P60/P50/P48/P30/P25/P24
Video format
MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)
Video maximum bit rate
60Mbps
Support file system
FAT32/exFAT
photo size
4000×3000
Pixel size
12μm
Wavelength range
8–14μm
Temperature range
High gain mode: -20° to +150° Low gain mode: 0° to +550°
Temperature measurement accuracy
±3°C or ±3% of reading (whichever is greater) @Environmental temperature-20°C~60°C
Accurate temperature measurement distance
2–20 meters
Camera resolution

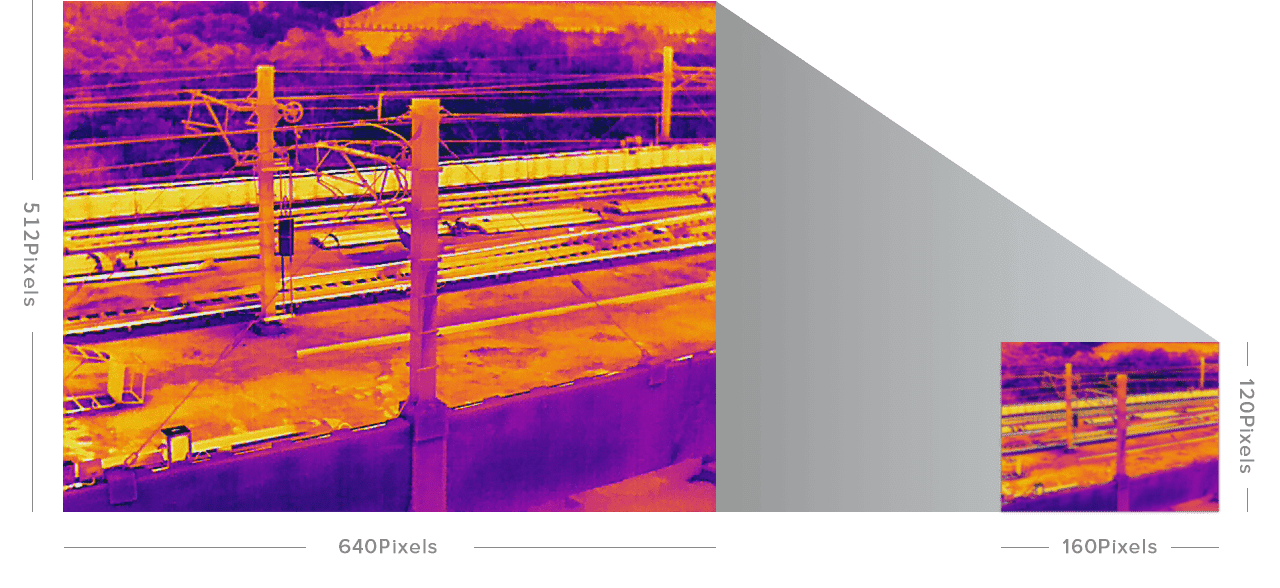

Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
Photo mode
Single shot Burst shooting: 3/5 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s DNG:5s/7s/10s/20s/30s/60s HyperLight: support (under 4K JPEG format) Long exposure:Max. 8s HDR imaging: support (under 4K JPEG format)
Type
TFT LCD
Dimensions
7.9 inches
Maximum Brightness
2000 nits
Refresh Rate
60Hz
Touch Control
Supports 10-point touch
Autel Smart Controller V3
Material
PC+ABS
Dimensions
269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
Weight
1194 g (protective case excluded) 1365 g (protective case included)
Operating Temperature
-20℃ to 40℃
Storage Temperature
+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
Protection Rating
IP43
Internal Storage
128GB
microSD Extension
Not supported
Operating System
Based on Android 11
Application Installation
Supports the installation of third-party Android apps
Video Performance
4K@24FPS H.264/H.265 video smooth play
HDMI
Outputs up to 1080P@60FPS video
USB-C
Charging: supports PD/QC fast charging, up to 65W Data: USB3.1 Gen2
USB-A
Charging: 5V/2A Data: USB2.0
GNSS
GPS+Galileo+BeiDou+GLONASS
Wi-Fi Protocol
802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
Wi-Fi Operating Frequency
2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz 5.1G: 5.15 - 5.25 GHz** 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz * Only applicable to SRRC regions. ** Only applicable to MIC regions. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
Wi-Fi Effective Isotropic Radiated Power (EIRP)
2.4G: ≤30dBm (FCC), ≤20dBm (CE/SRRC) 5.1G: ≤10mW (MIC) 5.8G: ≤33dBm (SRRC), ≤30dBm (FCC), ≤14dBm (CE)
Bluetooth
Bluetooth 5.0
Bluetooth Operating Frequency
2.400 - 2.4835 GHz Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
Bluetooth Effective Isotropic Radiated Power (EIRP)
Gimbal
3-axis stabilization
Mechanical range
Tilt: -135° to +45°; Pan: -100° to +100°
Controllable rotation range
Tilt: -90° to +30°; Pan: -90° to +90°
Max control speed (Tilt)
300°/s
Angular Vibration Range
±0.005°
Lens Focal length
13mm
Image Format
JPG (default); DNG
Max bitrate
80Mbps
Thermal & Zoom
Person
SUV
Truck
Dimension
1.8*0.5m
4.2*1.8m
6*4m
Detection
542m
1661m
2889m
Recognition
135m
415m
722m
Identification
68m
208m
Mechanical scope
Pitch: -135° to +45° Heading: -100° to +100°
Controllable rotation range
Pitch: -90° to +30° Heading: -90° to +90°
Stable system
Three-axis stabilization
Maximum control speed (pitch)
300°/s
Angualr vibration range
0.005°
Obstacle Avoidance
Sensing system type
Omnidirectional sensing system
Forward
Accurate measurement range: 0.5–18 m Effective sensing speed:<10m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Backward
Accurate measurement range: 0.5–16 m Effective sensing speed:<10m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Upward
Accurate measurement range: 0.5–10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
Downward
Accurate measurement range: 0.5–10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80°
Left and right
Accurate measurement range: 0.5–10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment
Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)
Battery & Charger
Battery Type
Li-Po 3S
Rated Capacity
5800 mAh
Voltage
13.2 V
Battery Energy
67 Wh
Charging Time
About 120 minutes
Battery Endurance
2.5 hours (Max brightness) 4.0 hours (50% brightness)
Battery Replacement
Not supported
Smart Battery XE3_7100_1155
Operating Temperature
0~+45℃
Battery Type
LiPo 3S
Rated Capacity
7100 mAh
Battery energy
82 Wh
Voltage
11.55 V
Charging Voltage Limit
13.2V
Rated Charging Power
66W
Maximum charging power
93W
Weight
365g
Battery charging temperature
power input
100–240V ~ 50/60 Hz, 1.5 A
Output port
Battery charging interface/USB-A
Battery charging interface
13.2V~5A
USB charging port
5V~3A, 9V~2A, 12V~1.5A
Rated power
66W
Battery type
LiPo 3S
Energy
82 Wh
Charging temperature range
5°C to 45°C
Storage temperature and humidity
-10~30°C，65±20%RH
Recommended storage temperature
22–28°C
Max charging power
93W
Charging time
90 minutes
Input
100–240 V, 50/60 Hz, 1.5A
Output
13.2 V 5 A 5V 3A 9V 2A 12V 1.5A
App & Storage
Ideal storage environment
+ 22°C ~ +28°C
Storage temperature and humidity
- 10°C ~ +30°C, 65 ± 20%RH
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
