EVO II Pro V2 — 6K Gimbal Camera Drone
The classic foldable 6K platform: 1-inch 20 MP sensor, adjustable aperture, 8× zoom, 40-minute flight and 9 km transmission — a proven workhorse for media and inspection alike.
Flight Time
40 min
Camera
6K 1" CMOS 20 MP
Range
9 km
Weight
1191 g
Wind Resistance
10.7 m/s
Max Speed
20 m/s
- ✓1-inch 20 MP CMOS with 6K/30 and 4K/60 video
- ✓Adjustable f/2.8–f/11 aperture and 8× lossless zoom
- ✓40 min flight time, 7100 mAh smart battery

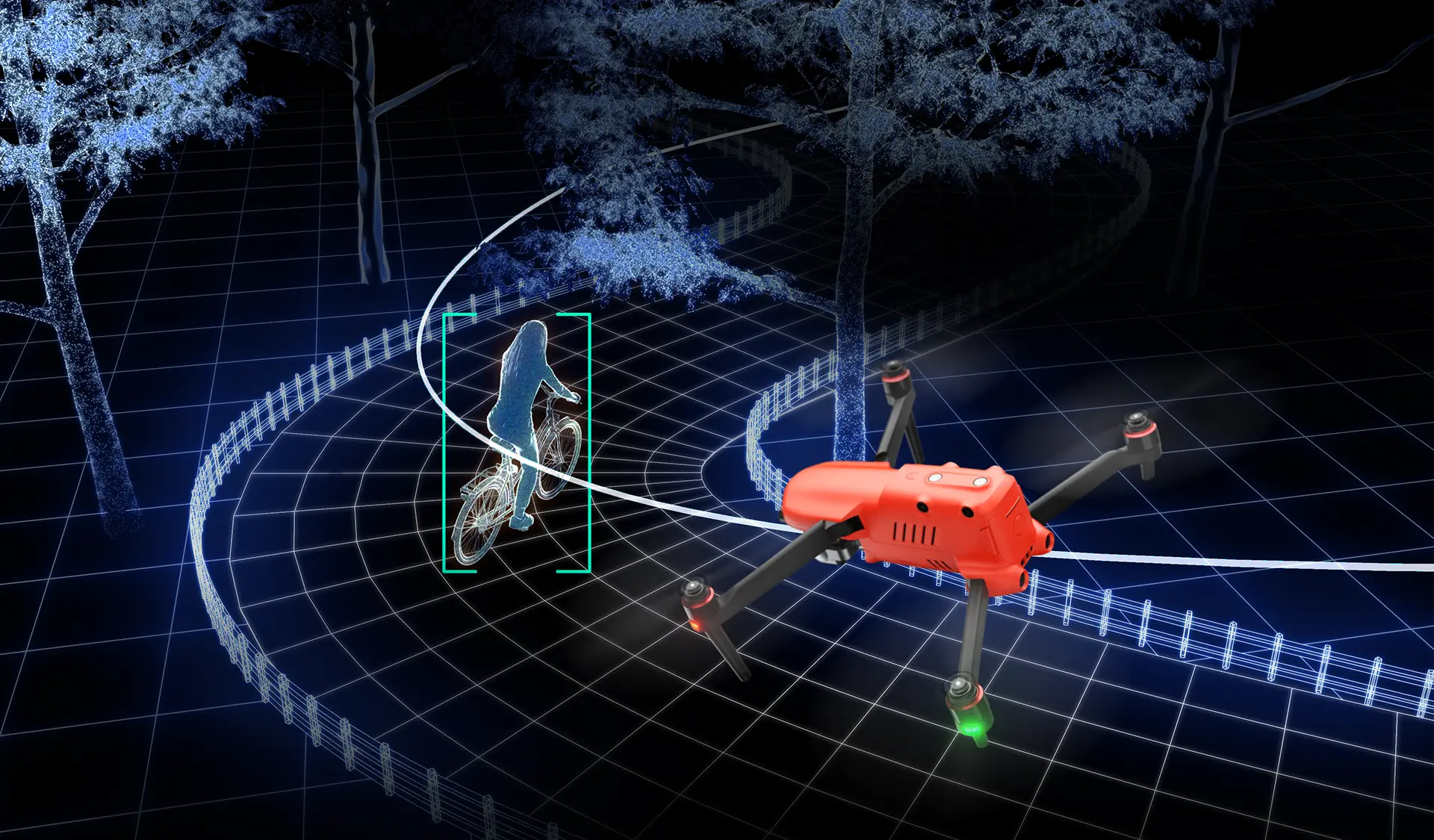

- ✓12-sensor omnidirectional obstacle avoidance
- ✓Folds to 410×345×175 mm for transport
Full Specifications
Aircraft
Wheelbase
397 mm
Size(L*W*H)
230*130*108mm(folded)457*558*108mm(unfolded)
Max Takeoff Altitude
7000 m
Max ascent speed
8 m/s (Ludicrous)
Max descent speed
4 m/s (Ludicrous)
Max horizontal flight speed
20m/s (Ludicrous)
Max flight distance (no wind)
25 km
Max tilt angle
33° (Ludicrous)
Max angular velocity
120°/s
Max flight time (no wind)
40 min
Max hovering time (no wind)
35 min
Operating temperature range
-10°C ~ 40°C
Maximum resistance to wind
12 m/s (Take-off and landing)
Operating frequency
902–928MHz (FCC Only)2.400–2.4835GHz5.725–5.850GHz (non-Japan)5.650–5.755GHz (Japan Only)
Transmission power
900MFCC/ ISED: ≤31dBm2.4GFCC/ ISED: ≤32dBmSRRC/CE/MIC/RCM: ≤20dBm5.8G (non-Japan) ; 5.7G (Japan)FCC/ISED/SRRC/MIC: ≤33dBmCE/ RCM: ≤14dBm
Hovering accuracy
Vertical: ±0.1 m (when the visual positioning is working normally);±0.5 m (when GPS works normally)Horizontal: ±0.3 m (when the visual positioning is working normally);±1.5 m (when GPS works normally)
GNSS
GPS/Beidou/Glonass/Gallieo
Internal storage
8GB
SD storage
max. support 256GB (UHS-3 or Class 10)
Camera & Gimbal
Gimbal
3-axis stabilization
Mechanical range
Tilt: -135° to +45°;Pan: -100° to +100°
Controllable rotation range
Tilt: -90° to +30°;Pan: -90° to +90°
Max control speed (Tilt)
300°/s
Angular Vibration Range
±0.005°
effective pixels
20MP
FOV
82°
Lens
35 mm format equivalent focal length: 28.6 mmAperture: f/2.8 - f/11Focus range: 1 m to infinity (with auto focus)
ISO range
Video: 100–6400Photos: 100–12800
Zoom
1–16x (up to 3x lossless zoom)
Photo mode
Single shotBurst shooting: 3/5 framesAuto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV BiasTime Lapse: JPG: 2s/5s/7s/10s/20s/30s/60sDNG: 5s/7s/10s/20s/30s/60sHyperLight: support (under 4K JPEG format)Long exposure:Max. 8sHDR imaging: support (under 4K JPEG format)
Photo resolution
5472*3648 (3:2)5472*3076 (16:9)3840*2160 (16:9)
Video format
MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video resolution
6K 5472*3076 p30/p25/p244K 3840*2160 p60/p50/p48/p30/p25/p242.7K 2720*1528 p120/p60/p50/p48/p30/p25/p241080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max bitrate
120Mbps
Obstacle Avoidance
Sensing system type
Omnidirectional sensing system
Forward
Accurate measurement range: 0.5–18 mEffective sensing speed:<12 m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
Backward
Accurate measurement range: 0.5–16 mEffective sensing speed:<12 m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
Upward
Accurate measurement range: 0.5–10 mEffective sensing speed:<5 m/s; Viewing angle: Horizontal: 65°, Vertical: 50°
Downward
Accurate measurement range: 0.5–10 mEffective sensing speed:<5 m/s; Viewing angle: horizontal: 100°, vertical: 80°
Left and right
Accurate measurement range: 0.5–10 mEffective sensing speed:<5 m/s; Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment
Forward, Backward and Sides:Surface with clear pattern and adequate lighting (lux > 15)Upward:Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)Downward:Surface with clear pattern and adequate lighting (lux > 15)Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
Battery & Charger
Voltage
13.2 V
Battery type
LiPo 3S
Energy
82 Wh
Charging temperature range
5°C to 45°C
Storage temperature and humidity
-10~30°C，65±20%RH
Recommended storage temperature
22–28°C
Max charging power
93W
Charging time
90 minutes
Input
100–240 V, 50/60 Hz, 1.5A
Output
13.2 V 5 A5V 3A 9V 2A 12V 1.5A
Rated power
66W
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
